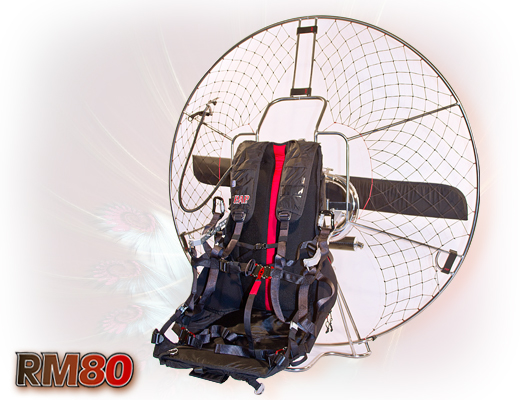

PAP RM 80CC PARAMOTOR

rnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrn

TECHNICAL SPECIFICATION RM80
	Chasis 1250 mm	Chasis 1400 mm	Chasis 1450 mm
Motor Type	RM80
Cylinder	78 cc (47,7x44mm)
Carburettor	Walbro 24 mm.
Power & Ignition	16 CV / 9400 R.P.M. Electronic
Reduction gear	Mechanical in oil bath, inclined teeth
Reduction ratio	1/3,65
Transmission	Centrifugal clutch
Start	Manual
*Thrust (kg)	aprox. 49kg	aprox. 54kg	aprox. 56kg
Fuel	Leaded or unleaded Super grade + synthetic oil 2%
Fuel Circuit	PRIMER
Fuel Tank	13,5 L
*Autonomy hours	aprox. 3.30 h.
Cage	Stainless Steel / T.I.G.
Paramotor weight	25 kg.	26 kg.	26,5 kg.
Harness size: S, M, L, XL	Sup´Air Special PAP
Propeller Size	115 cm.	125 cm.	130 cm.
Paramotor Size	125 x 125 x 43	140 x 140 x 43	145 x 145 x 43
Max. Pilot weight	80 kg.	90 kg.	95 kg.
Recommended Pilot weight	65 kg.	75 kg.	75 kg.

rn



rnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrn

OPTIONS RM80
Cage 1200 mm.(Light) Size	NO
Cage 1250 mm. Size	OPTIONAL
Cage 1400 mm. Size	OPTIONAL
Cage 1450 mm. Size	OPTIONAL
Cage Division (2 PARTS)	OPTIONAL
Cage Division (3 PARTS)	OPTIONAL
Cage Division (5 PARTS)	OPTIONAL (ONLY for 1400RM)
Wood propeller	STANDARD (NO for 1450RM)
Carbon fibre propeller	OPTIONAL (STANDARD for 1450RM)
Propeller Covers	STANDARD
Mousqueton Parafly Acier	OPTIONAL
Zicral Autolock Carabine	STANDARD
Harness Wood Board	STANDARD
Harness Carbon Board	OPTIONAL

rn



rnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrn

ACCESSOIRES RM80
H.R.S. Container	OPTIONAL
S.R.S. Lateral Container	OPTIONAL
RPM Counter	OPTIONAL
Fuel Hose Coupling	OPTIONAL
Cage Luggage Bag	OPTIONAL
Engine Luggage Bag	OPTIONAL (NO 2 PARTS CAGE)
ATS System	OPTIONAL
