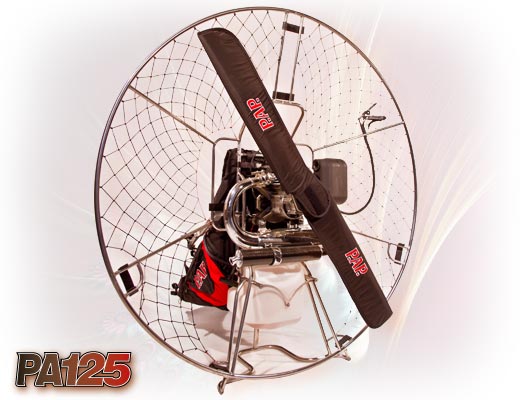

PAP PA 125CC PARAMOTOR

rnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrn

TECHNICAL SPECIFICATION PA125
	Chasis 1250 mm	Chasis 1400 mm	Chasis 1450 mm
Motor Type	PA125
Cylinder	125 cc (54x54mm)
Carburettor	Walbro 24 mm.
Power & Ignition	22 CV / 9580 R.P.M. Electronic
Reduction gear	Mechanical in oil bath, inclined teeth
Reduction ratio	1/3,65
Transmission	Centrifugal clutch
Start	Manual
*Thrust (kg)	aprox. 58kg	aprox. 63kg	aprox. 65kg
Fuel	Leaded or unleaded Super grade + synthetic oil 2,5%
Fuel Circuit	PRIMER
Fuel Tank	13,5 L
*Autonomy hours	aprox. 3h.
Cage	Stainless Steel / T.I.G.
Paramotor weight	26 kg.	27 kg.	27,5 kg.
Harness size: S, M, L, XL	Sup´Air Special PAP
Propeller Size (cm)	115 cm.	125 cm.	130 cm.
Paramotor Size (cm)	125x125x43	140x140x43	145x145x43
Max. Pilot weight	100 kg.	120 kg.	125 kg.
Recommended Pilot weight	80 kg.	100 kg.	105 kg.

rn



rnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrn

OPTIONS PA125
Cage 1200 mm.(Light) Size	NO
Cage 1250 mm. Size	OPTIONAL
Cage 1400 mm. Size	OPTIONAL
Cage 1450 mm. Size	OPTIONAL
Cage Division (2 PARTS)	OPTIONAL
Cage Division (3 PARTS)	OPTIONAL
Cage Division (5 PARTS)	OPTIONAL (ONLY for 1400PA)
Wood propeller	STANDARD (NO for 1450PA)
Carbon fibre propeller	OPTIONAL (STANDARD for 1450PA)
Propeller Covers	STANDARD
Mousqueton Parafly Acier	OPTIONAL
Zicral Autolock Carabine	STANDARD
Harness Wood Board	STANDARD
Harness Carbon Board	OPTIONAL

rn



rnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrn

ACCESSOIRES PA125
H.R.S. Container	OPTIONAL
S.R.S. Lateral Container	OPTIONAL
RPM Counter	OPTIONAL
Fuel Hose Coupling	OPTIONAL
Cage Luggage Bag	OPTIONAL
Engine Luggage Bag	OPTIONAL (NO 2 PARTS CAGE)
ATS System	OPTIONAL
