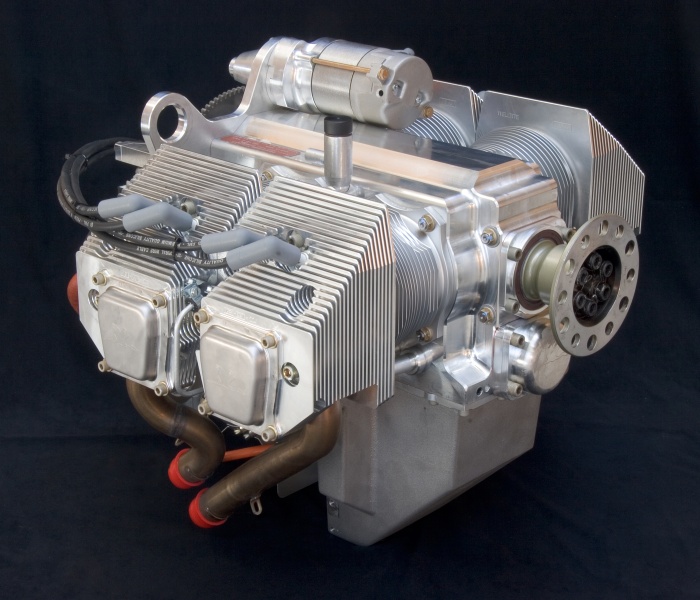

JABIRU 2200CC AIRCRAFT ENGINE

rn

The Jabiru 2200cc Aircraft Engine is a 4-cylinder 4-stroke horizontally opposed air cooled engine.

rn

At 60kg installed weight it is the lightest 4-cylinder 4-stroke aircraft engine of this output manufactured in the world. It can be installed in an aircraft at the same weight as most popular 2-stroke engines.

rn

Overall dimensions are extremely small. It's 596mm (23.46") width allows tractor applications with very small frontal areas. The Jabiru engine is designed for either tractor or pusher installation.

rn

It is an ideal replacement for the Rotax 582 2-cylinder 2-stroke engine which powers many of the existing light aircraft. Surprisingly it is the same weight as the Rotax 582. It is also a lightweight, smaller-package alternative to all of the VW derivative engines and the Rotax 912. It is an engine designed by aircraft designers for aircraft applications!


rn

ENGINE FEATURES

rn

rn
• 4 Stroke
rn
• 2200 cc (134 cu in)
rn
• 4 Cylinder Horizontally Opposed
rn
• 1 Central Camshaft
rn
• Push Rods
rn
• Over Head Valves (OHV)
rn
• Ram Air Cooled
rn
• Wet Sump Lubrication
rn
• Direct Propeller Drive
rn
• Dual Transistorized Magneto Ignition
rn
• Integrated AC Generator
rn
• Electric Starter
rn
• Mechanical Fuel Pump
rn
• Naturally Aspirated - 1 Pressure Compensating Carburetor
rn
• 6 Bearing Crankshaft
rn

rn

SPECIFICATIONS

rnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrn

rn Aircraft Engine rn	rn Jabiru 2200cc 80 hp rn
Displacement	2200 cc (134cu.in.)
Bore	97.5 mm
Stroke	74 mm
Compression Ratio	8:1
Directional Rotation of Prop Shaft	Clockwise - Pilot's view Tractor applications
Ramp Weight	62.8 kg (138 lbs) complete including exhaust, carburetor, starter motor, alternator and ignition system
Ignition Timing	25˚ BTDC
Firing order	1 - 3 - 2 - 4
Power Rating	60 kW (80 hp) @3300 RPM
Fuel Consumption at 75% power*	15 l/hr (4 US gal/hr)
Fuel	AVGAS 100/130 or MOGAS - must be above 95 OCTANE RON
Oil	Aeroshell 15W50 or equivalent
Oil Capacity	rn 2.3 ltr (2.2 quarts) rn
Spark Plugs	NGK D9EA - Automotive
