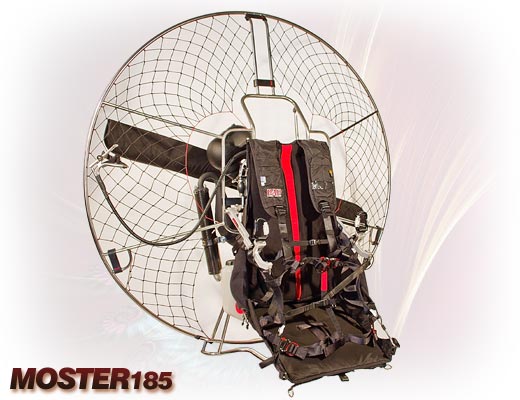

PAP MOSTER 185CC PARAMOTOR

rnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrn

TECHNICAL SPECIFICATION MOSTER 185
	Chasis 1250 mm	Chasis 1450 mm
Motor Type	Vitorazzi Moster
Cylinder	185 cc (66x54mm)
Carburettor	Walbro
Power & Ignition	25 CV / 7800 R.P.M. Electronic
Reduction gear	Poly-V Belt
Reduction ratio	1/2,67	1/2,8
Transmission	Direct
Start	Manual
*Thrust (kg)	aprox. 70kg	aprox. 78kg
Fuel	Leaded or unleaded Super grade + synthetic oil 2,5%
Fuel Circuit	MANUAL FUEL PUMP
Fuel tank	13,5 L
*Autonomy hours	aprox. 3 h.
Cage	Stainless Steel / T.I.G.
Paramotor weight	26 kg.	27 kg.
Harness size: S, M, L, XL	Sup´Air Special PAP
Propeller Size (cm)	115 cm.	130 cm.
Paramotor Size (cm)	125 x 125 x 40	145 x 145 x 40
Max. Pilot weight	100 kg.	140 kg.
Recommended Pilot weight	90 kg.	120 kg.

rn



rnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrn

OPTIONS MOSTER185
Cage 1200 mm.(Light) Size	NO
Cage 1250 mm. Size	OPTIONAL
Cage 1400 mm. Size	NO
Cage 1450 mm. Size	OPTIONAL
Cage Division (2 PARTS)	OPTIONAL
Cage Division (3 PARTS)	OPTIONAL
Cage Division (5 PARTS)	NO
Wood propeller	STANDARD (NO for 1250M)
Carbon fibre propeller	OPTIONAL (STANDARD for 1250M)
Propeller Covers	STANDARD
Mousqueton Parafly Acier	OPTIONAL
Zicral Autolock Carabine	STANDARD
Harness Wood Board	STANDARD
Harness Carbon Board	OPTIONAL

rn



rnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrn

ACCESSOIRES MOSTER185
H.R.S. Container	OPTIONAL
S.R.S. Lateral Container	OPTIONAL
RPM Counter	OPTIONAL
Fuel Hose Coupling	OPTIONAL
Cage Luggage Bag	OPTIONAL
Engine Luggage Bag	OPTIONAL (NO 2 PARTS CAGE)
ATS System	STANDARD

rn
