FLY PRODUCTS ECO 2

rn

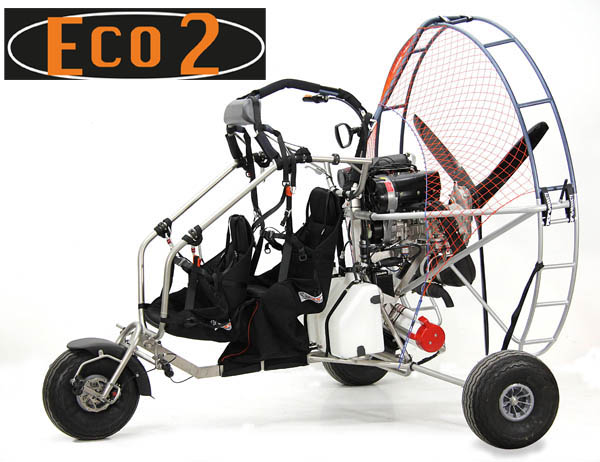

ECO 2 is a Trike to high performances. The Rotax 503 engine with a propeller 160 cm generates a pushed maximum of 150 kg and thanks of the propeller of remarkable dimension its push remains good also to the low regimes of the motor guaranteeing a flight levelled with a remarkable fuel saving and one contained noisiness. The ECO 2 is particolary adapted to the schools of flight for didactic flights and tourist flights in single and double quantity and in the best of the confort.

rnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrn

rn ECO2 KIT rn

rn Fly Products proposes the Trike Eco 2 also in kit version. The kit of mountage includes all the pieces for the cage mountage and a detailed manual of instructions. The engine and the propeller are not included. On this cage it is possible to fit the Rotax 503 and 582 and further engines compatible with the supports. rn

rn   rn

rnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrn

	rn
Model	ECO2 B	ECO2 C	ECO2 E
Engine type	ROTAX 503	ROTAX 503	ROTAX 503
Starter	M	M	M+E
Flexible coupling	NO	YES	YES
Cylinder n°	2	2	2
C.C.	503	503	503
Max power (HP)	54	54	54
Weight kg	120	120	127
Drive	1:2,58	1:2,62	1:2,62
Fuel tank lt	32	32	32
Autonomy hours	-	-	-
Max pilot weight kg	100+100	100+100	100+100
Propeller blades n°	3	3	3
Propeller length cm	160	160	160
Clutch	NO	NO	NO
Overall dimensions folded LENGTH = cm	185	185	185
Overall dimensions folded WIDTH = cm	100	100	100
Overall dimensions folded HEIGHT = cm	100	100	100

rn
