Product Description

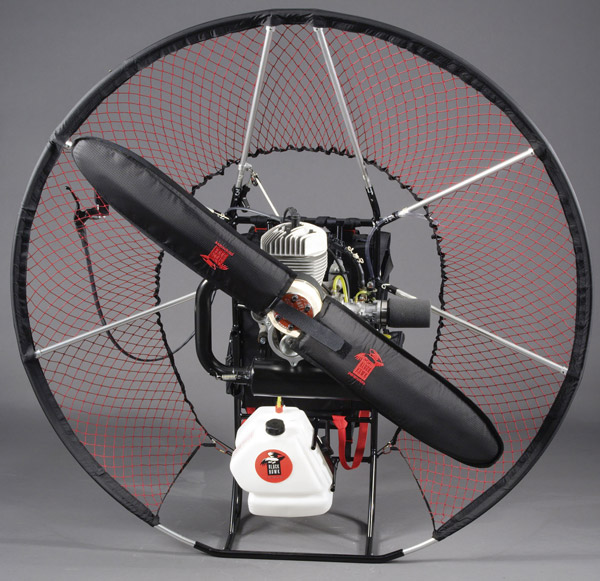

BLACKHAWK MZ313 PARAMOTOR

rnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrn

rn Engine rn	MZ 34-313
rn HP max RPM rn	32hp 6300rpm
rn Reduction Type rn	Belt Driven Direct Drive
rn Propeller rn	46x35 or 48x33
rn Blade Type rn	2 Blade Prop
rn Thrust & climb rate rn	165 -200 Lbs climb 600fpm
rn Method Start rn	Pull Start Or pull & electric
rn Fuel Tank rn	2.2 gallons
rn Flight time rn	2 hrs
rn Frame type rn	Travel, Rhino or Armadillo Cage
rn Max Pilot Weight rn	400 Lbs
rn Unit dry Weight rn	59 Lbs

rn

MZ313 schematic

rn

rnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrnrn

Bore:	76 mm
Stroke:	69 mm
Displacement:	313 cc
Rotation:	Anti-clockwise facing PTO
Starter:	Electric and recoil starter
Generator:	90 Watt
Max brake output:	27 HP @ 6250 RPM
Max permissable RPM:	6250 RPM
Carburetor:	Tillotson
Lubrication:	Oil (Castrol TTS) in unleaded gas 50:1
Reduction Ratio's avail.	1.84, 2.05, 2.14, 2.24, 2.34 to 1
Complete engine weight:	19 kg (42 lbs)

rn

31 hp, 160 to 200 lbs of static thrust, great single place engine but also a very strong tandem engine with the larger 48inch prop. Pull start or pull with electric start option, this is a very easy engine to pull start on the ground or in the air, so electric start is completely unnecessary and not recommended.

rn

Complete Black Hawk Mz-34 paramotor ready to fly dry weight 60lbs, very pleasant low baritone sound, vibration low, Dependability excellent; cosmetics excellent; ease of repairs or adjustments excellent, there just is not a better engine for powered paragliders period.

rn

Comes with exhaust silencer and a tuned exhaust.

rn

This engine recommended for pilots that weigh 175lbs and up.

rn

The MZ34 ultralight engine is a unique blend of space age materials, innovative design and state of the art manufacturing methods.

rn

The Nikasil bore gives the engine a long life without adding unnecessary weight. The ignition system is fully electronic for maximum reliability and minimum maintenance.

rn

The MZ34 weighs a mere 19 Kg (42 lbs) ready to fly (less propeller) and is supplied complete with reduction drive, electric starter, recoil starter, automatic decompression valve and muffler.

rn

Air-cooled, single cylinder, two-cycle engine with carburetor. electronic ignition, and electric/recoil starter.

rn

Warranty Information

rn

Each and every item that makes up a BlackHawk Powered Paraglider is fully Warranted 100% for two years to the original purchaser from the date of original purchase of any factory defects (engine carries a manufacture 6 month warrenty). The following items are included in this warranty: cage, couplers, rods, frame, gas tank, harness, carabineers, throttle, motor mounts and motor mount plates. This warranty excludes any and all items that are damaged by the Pilot in launching, landing, flying or transporting or misuse of said BlackHawk Powered Paraglider. The BlackHawk R80, R120, Talon 175, MZ313, Rocket 313 and Hellcat 313 engines carry a 6 month manufacturers warranty against factory defects from the original date of purchase. All engines are subject to the manufactures warranty and conditions Warranties are not transferable to anyone other than the original purchaser. Please contact BlackHawk for Manufacturers warranty conditions or claims. Not included under our warranty are any type of engine seizures caused by improper carburetor tuning, adjustment or failure to properly follow the manufacturers maintenance instructions.
